System Overview

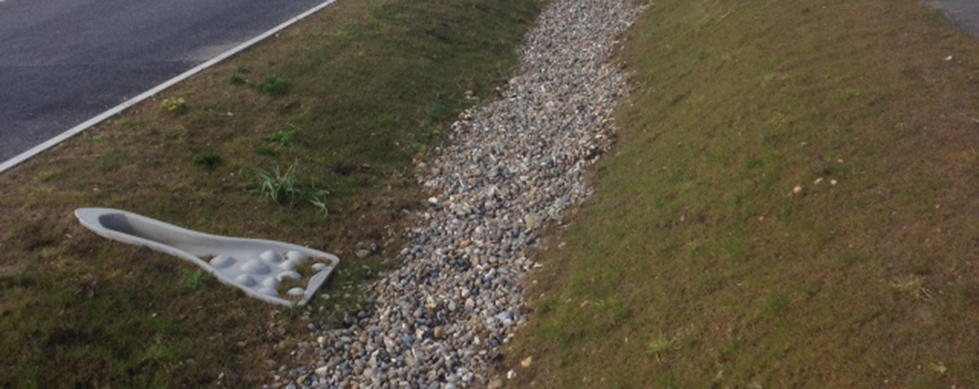

The ACO SuDS Swale Inlet offers a visually appealing solution for linking proprietary drainage systems to vegetated features such as:

• Swales
• Basins
• Ponds
• Water Courses
• Rain Gardens

Unlike traditional in-situ concrete structures, the low-profile inlet blends naturally with its surroundings, enhancing the environment rather than disrupting it.

SuDS Benefits

• Attractive transition between proprietary and vegetated drainage systems

• Protects against erosion by slowing water flow and encouraging dispersion

• Reduces flow velocities, minimising disturbance to vegetation and soil

• Lessens pressure on downstream drainage infrastructure

• Complies with CIRIA C753 design guidance for swales

• Mitigates localised flooding by slowing and distributing surface water runoff

Practical Benefits

• Available in three colours to suite site aesthetics

• Uniform, low-profile design that blends with the surrounding landscape

• Cost-effective alternative to in-situ concrete structures and precast headwalls

• Durable and long-lasting thanks to ACO’s high-strength, low-absorption material

• Quick, hassle-free installation with no need for on-site formwork

• Easy to inspect and maintain, with no moving parts or complex components

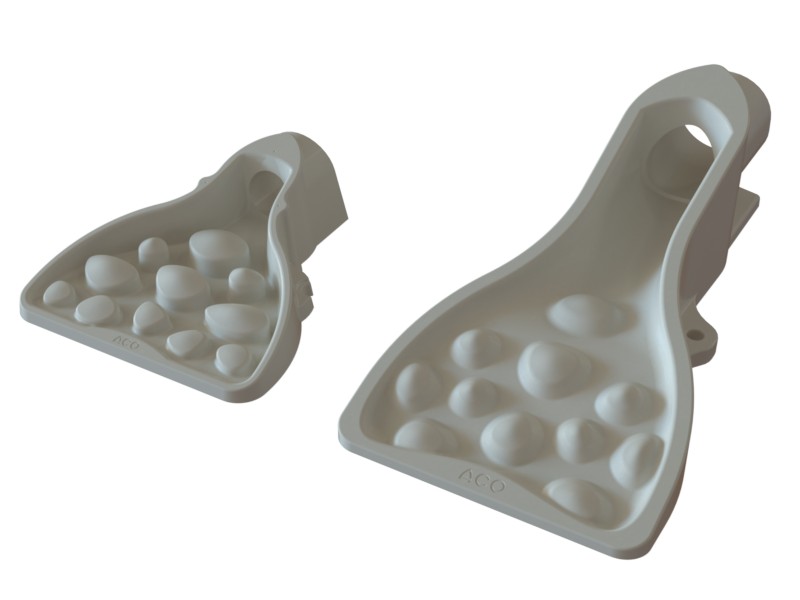

To suit a range of site conditions and flow requirements, the ACO SuDS Swale Inlet is available in two pipe connection sizes:

110mm Dia Swale Inlet

• Designed for 110mm pipe connection, to meet flow rate guidance in CIRIA C753
• Compact and visually discreet, making it ideal for locations with limited visual impact requirements
• Perfect for use in small catchments, and restricted spaces like rain gardens or small swales

160mm Dia Swale Inlet

• Designed for 160mm pipe connection, to meet flow rate guidance in CIRIA C753
• Ideal for sites with larger contributing areas or greater rainfall intensity
• Offers all the same installation and aesthetic benefits as the smaller unit, particularly suited to swales or larger features

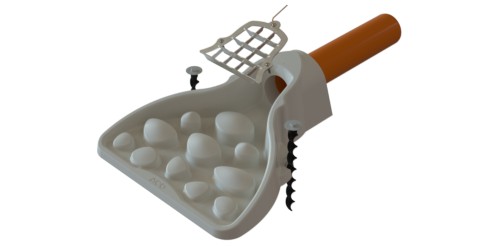

The SuDS Swale inlets are compatible with optional grating kits for applications that require a greater degree of protection. Available in a choice of two different grating types, the Swale Inlet Kit contains:

• 1 Stainless Steel Grating (of selected type)
• 1 Security Allen Key
• 3 Nyclon Anchors
• 3 Fixing Screws
• 3 Washers

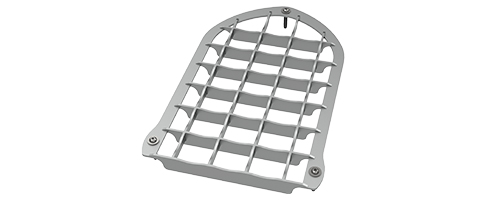

Standard mesh grating

The standard mesh grating kit is suitable for SuDS features which will be regularly mowed or maintained. The grate prevents mower wheels from falling into the outlet.

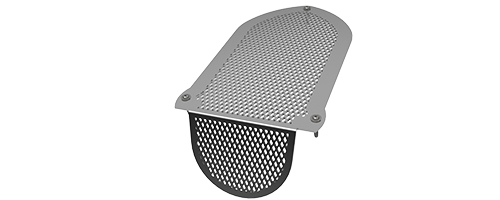

Newt mesh grating

The newt mesh grating kit is specifically designed for Newts and other amphibians. The mesh limits their access to the Swale Inlet, and retains the species in their natural environment.
