Terrace & Facade drainage Designing surface water runoff in urban environments

With building life expectancies increasing and permitted discharge rates being restricted, managing water from the roof to sewer can be a complex challenge. Careful consideration of attenuation requirements and hydraulic loads are needed to meet these challenges and select the correct and long-lasting drainage solution.

Elevated and roof terraces, roof gardens, level thresholds and façades present specific challenges to specifiers and contractors. To tackle some of the symptoms of climate change, the reuse of rainwater and the requirement to make use of it at source are becoming increasingly important aspects of planning conditions imposed by local authorities.

Terrace & Facade brochure

Terrace and Facade brochure

An overview of specific water management solutions for terraces and facades

Drainage areas

Terrace and balcony thresholds

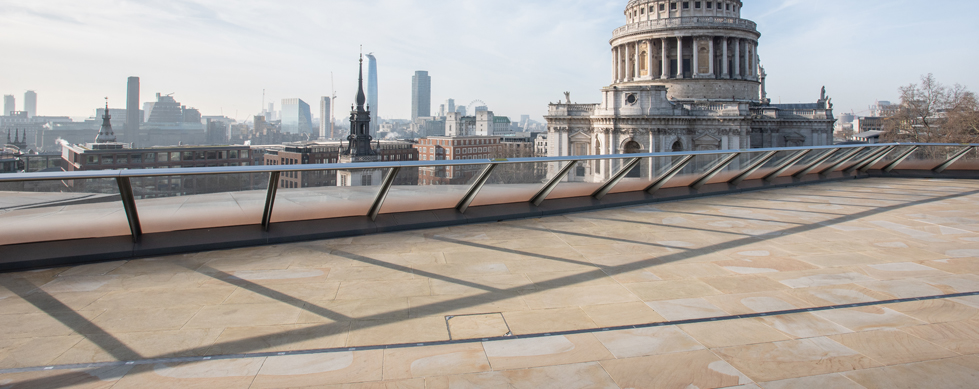

On a terrace or balcony, the primary aim is to remove the water from the surface as soon as possible enabling safe access and preventing water ingress into a building. These areas are often more exposed, receiving rainwater from the surface area plus other contributing areas, including run-down from the façade.

Raised or suspended deck structures

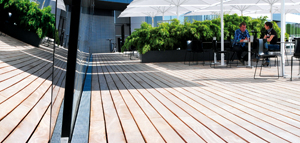

For a raised or suspended deck structure including permeable decking, open-sided drainage channels provide a path of least resistance to the discharge point, collecting water from both the surface and the sub-surface.

Ground level threshold and Facade

Ground level façade and threshold drainage protects the exterior and ingress points of buildings, capturing rainwater runoff from the building itself and the surrounding area.Considerations include aesthetics for these public access points, heel safe options and adaptable linear, radial and bespoke designs to follow the building contours and curves.

Roof Gardens

Roof Gardens are green roofs, which can be partially or completely covered with vegetation and a growing medium, planted over a waterproofing membrane. They are an increasingly important part of sustainable urban developments, including sustainable urban drainage as they absorb rainfall and reduce flooding, whilst enhancing biodiversity and amenity for residents.
