ACO StormBrixx Configurator

Free cloud software

This software uses ACO’s experience in designing of underground geocellular systems to support its StormBrixx range..

Login Register

Fully Featured

Overview

Cloud based

The software means increased efficiency providing the design resource you need when you need it. It can be used on any device and will store all your projects.

Secure scheme filing

All designs created by registered users are stored on a secure server and are password protected. Past projects are easily retrieved from the personalised menu.

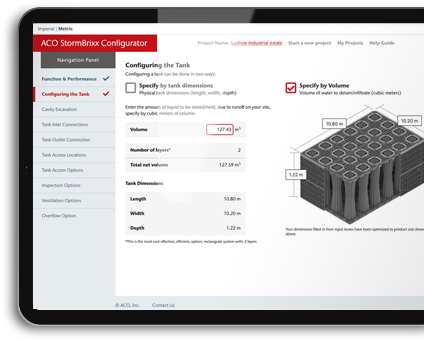

Easy tank configuration

Choose to configure by area dimensions or water storage volume.

Options and Accessories

Easily add into your design all tank access and accessory options.

Right product for the application

Choose to configure for attenuation or infiltration, standard duty or heavy duty.

Product Take-off

Achieve a full product take-off with part numbers within a few minutes.

Excavation volume

The excavation volume is calculated together with the fill and membrane quantity.

Knowledge database

There is support available either through a query submission or through self-help made possible by the comprehensive Knowledge database.

Further Detail

Overview

Safe Design

ACO StormBrixx Configurator software allows the user to design a StormBrixx tank in a step-by-step manner and produce a full bill of materials. The steps are:

• Attenuation or infiltration
• StormBrixx SD or StormBrixx HD
• Size by volume required or plan dimensions
• Excavation volume and cover depth
• Number/location of inlets and outlets
• Access points and location
• Ventilation options
• Overflow options
• PDF Project report with bill of materials

Design Support

ACO StormBrixx Configurator provides an optimised design based on a cuboid shaped tank and using standard ACO StormBrixx components and accessories selected by the user. For other configurations, such as irregular shaped tanks, provision of silt tunnels, or for site specific structural calculations please contact our ACO Water Management Design Services Team.
Email: suds@aco.co.uk or call them on 01462 816666.

QuAD 2.0 Hydraulic Design Software for surface water drainage and QuAD-VFC for flow control design are also available on the ACO website to allow you to prepare a full drainage, attenuation and flow control project.

User Confidentiality

Maintaining confidentiality is crucial for our StormBrixx Configurator users and their projects. This is made possible by password protection. All users that included an optional password when they first registered on the ACO website, or when they registered for other ACO design software, will be able to access StormBrixx Configurator using the same details. For those that did not enter the optional password it is necessary to create one in order to be able to use the software; this is simply in order to ensure your saved designs are protected.
