S Range

Surface drainage for heavy duty applications

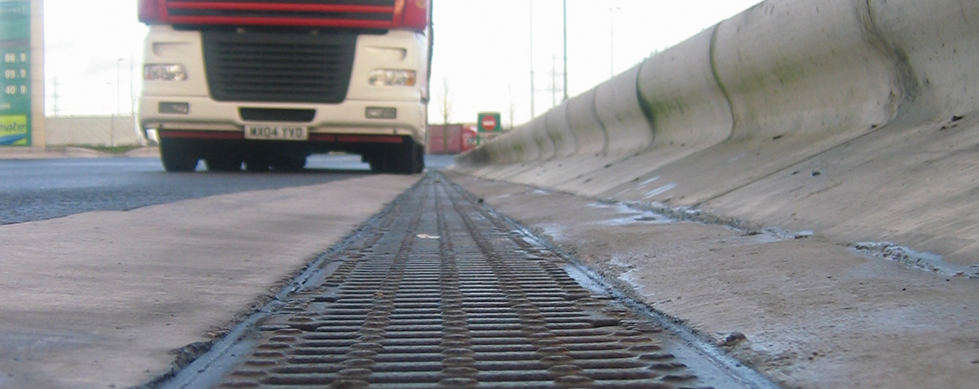

ACO S Range is a channel drainage system designed to provide efficient removal of surface water in heavy duty applications.

Manufactured from ACO's high strength polymer concrete, ACO S Range is tough channel drainage system with excellent chemical resistance. Integral cast iron edge rails provide maximum protection for the channel body.

The S Range system is available in four widths, 100mm, 150mm, 200mm and 300mm has constant and sloping depths channels for optimum performance and system design.

The ACO S100 system has a choice of slotted, Heelguard™, intercept and solid cover ductile iron gratings to ensure a wide variety of applications are catered for. The ACO S150, S200 and S300 systems are supplied with slotted ductile iron gratings. All ACO S Range gratings come complete with bolts to ensure gratings can be locked and accessed when required.

The system is UKCA and CE marked and fully certified to BS EN 1433:2002 up to and including Load Class F 900 applications - suitable for extremely high wheel loads including ports, docks and aircraft pavements



Sizes and gratings

The S Range system is available in four widths, 100mm, 150mm, 200mm and 300mm has constant and sloping depths channels for optimum performance and system design.

ACO S100 has a choice of slotted, heelguard, intercept and solid cover gratings.

All gratings come complete with locking bolts


Features

  • Suitable for heavy duty applications including aircraft pavements, ports and docks
  • Cast-in iron edge rails and heavy duty gratings improve the inherent strength of the system
  • ACO S100 has a choice of slotted, heelguard, intercept and solid cover gratings
  • All gratings come complete with locking bolts
  • Caters for a wide variety of catchment depths and hydraulic capacities
  • Sump and gully outlets available for connection to underground drainage
  • Traditional channel and grating drainage system

Benefits

  • The ACO S Range system is available in four channel widths: 100mm, 150mm, 200mm and 300mm
  • Manufactured from strong, lightweight polymer concrete material
  • Integral cast iron edge rails provide maximum strength and protection for channel body
  • Constant and sloping depth channels available
  • A range of high intake heavy duty ductile iron gratings all locked by 8 bolts per metre
  • Interconnecting channel end detail to aid alignment during installation
  • Channel units have base knockouts for connection to 110mm (S100), 160mm (S150 and S200) and 200mm diameter (S300) U-PVC pipes
  • UKCA and CE marked and fully certified to Load Class F 900 BS EN 1433:2002

Recommended Applications

  • Public landscaping
  • Car parking
  • HGV parking

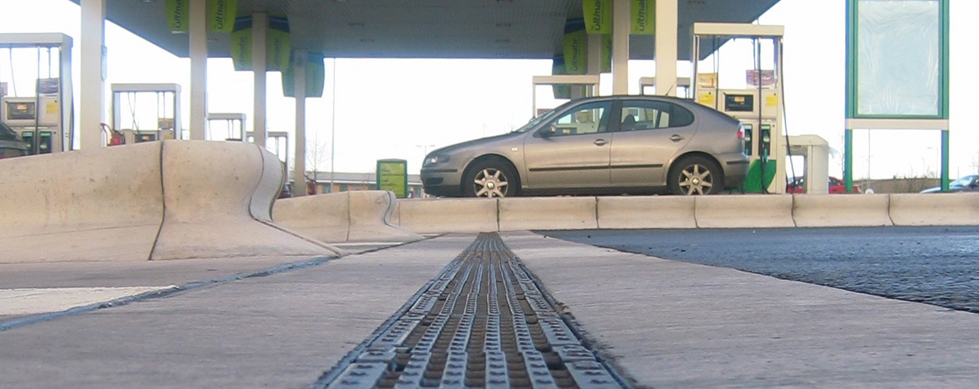

  • Petrol station forecourts
  • Light industrial
  • Heavy industrial
  • Airport (airside)
  • Distribution yards
  • Ports and dock side
  • Security areas
  • SuDs

Not Recommended Applications

  • Threshold drainage
  • Domestic landscaping
  • Public highways
