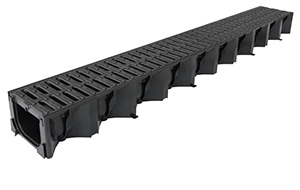

HexDrain Drainage channel for domestic applications

Manufactured from recycled polypropylene, ACO HexDrain is suitable for domestic applications up to Load Class A 15 - Pedestrian, cycleways, minimally trafficked areas (light domestic vehicles only).

The high quality ACO HexDrain channels clip together, allowing for quick and easy installation.

ACO's range of elegant and modern 'Complete the Look' gratings are available to provide choice and style to driveway and patio projects. A choice of eight gratings are available to provide the perfect finish:

  • Wedge Wire Stainless Steel
  • Mosaic Heelguard ATec
  • Intercept Heelguard ATec
  • Antique Iron Heelguard ATec
  • Polished Stainless Steel
  • Anthracite
  • Galvanised Steel
  • Black Plastic

Product overview video



Features

  • Choice of eight 'Complete the Look' Gratings, suitable for domestic applications

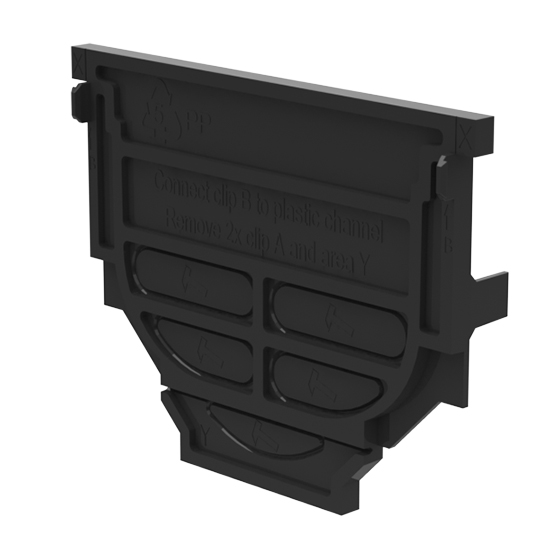

  • Easy fit end cap for both male and female connection
  • Choice of eight vertical outlet positions on every channel
  • Cutting guide to create half metre channels
  • Installation guide clearly marked on the underside of the channel
  • CE marked and fully certified to Load Class A 15 BS EN 1433:2002

Benefits

  • Channels clip together for easy and quick on-site fabrication
  • Microgrip grating surface finish, provides increased grip for pedestrians (black plastic grating only)
  • Anti-splay and anti-shunt features for improved performance under trafficked conditions

Recommended Applications

  • Garage Thresholds
  • Garage Thresholds

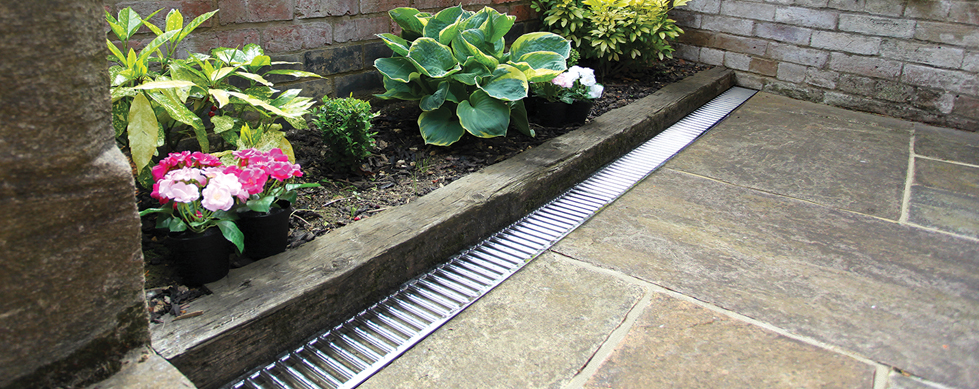

  • Patios and Paths
  • Patios and Paths
  • Pedestrian Precincts
  • Pedestrian Precincts

Not Recommended Applications

  • Car Parking Areas
  • Car Parking Areas

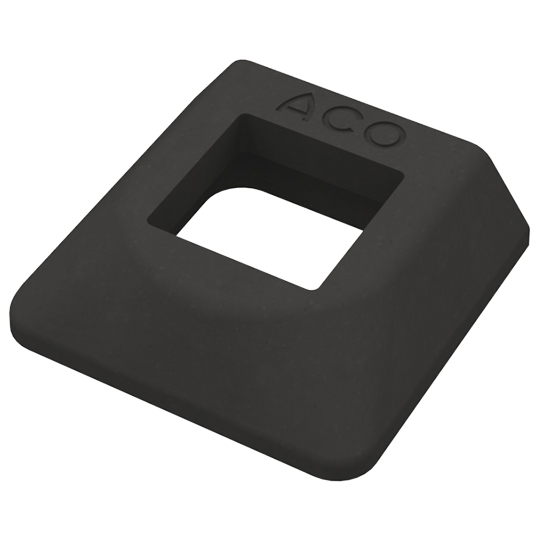

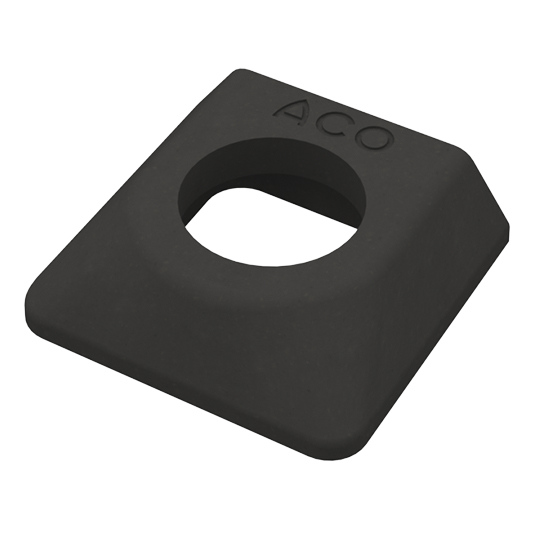

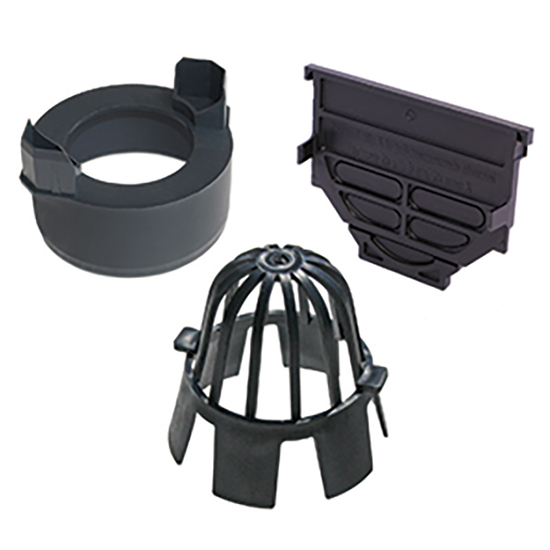

ACO HexDrain accessories

How to install video



ACO tips

How to remove the galvanised steel grate from your HexDrain A 15 channel

If your channels look like the ones shows on this page and have the following features:

  • Galvanised steel slotted grate with ACO engraved in opposing corners
  • No fixing bolts / locking bolts on the grate
  • Black plastic channel

Then you’ve got ACO HexDrain A15 installed

If you’d like to remove the grate for:

You can do this with a coat hanger. *please also wear relevant safety equipment, gloves are recommended

Lifting the grate

Ensure nothing is resting on top of the grate.

Insert the loop of the coat hanger in one end if the grate.

Lift the grate.

Replacing the grate

To replace the grate, just lay it back in place, and press back in.
