ACO HexDrain B 125®

Modern driveway drainage for paved domestic areas

Need a driveway channel that handles light vehicles? HexDrain B 125 is a BS EN 1433 Load Class B 125 polypropylene channel with a corrosion‑resistant HeelGuard™ composite grating and Drainlock™ bar‑less locking for quick, secure installs. The overall channel depth is 100 mm, making it a compact choice for domestic drives and small private car parks.

FAQs

• What load class is it and where can I use it? HexDrain B 125 is certified to Load Class B 125 (BS EN 1433) and is suitable for light vehicles, private car parks, drives and pedestrian precincts.
• How deep is the channel? The channel has an overall depth of 100 mm, helping where build‑up is tight.
• How does the grating lock and stay put? The Drainlock™ bar‑less system speeds installation and the anti‑shunt feature prevents grating movement once installed; the HeelGuard™ grating uses 8 mm slots.
• What accessories help with connection and maintenance? Use the Ø110 mm vertical outlet connector (11285), roddable foul air trap 110 mm (11191), closing endcap (11085) and sump (11385) with silt bucket for easy maintenance

ACO HexDrain® B 125 comes complete with a corrosion resistant black composite HeelGuard™ grating. The slots allows a person to move across with confidence, while the grate supports a domestic vehicle.

The ACO Drainlock™ grating has a bar-less locking device, allowing for quick and simple installation of gratings.

Complete the system with ACO’s range of accessories, designed to aid simple and fast installation

HexDrain® B 125 accessories

HexDrain® B 125 Closing endcap - 11085

HexDrain® B Sump - 11385

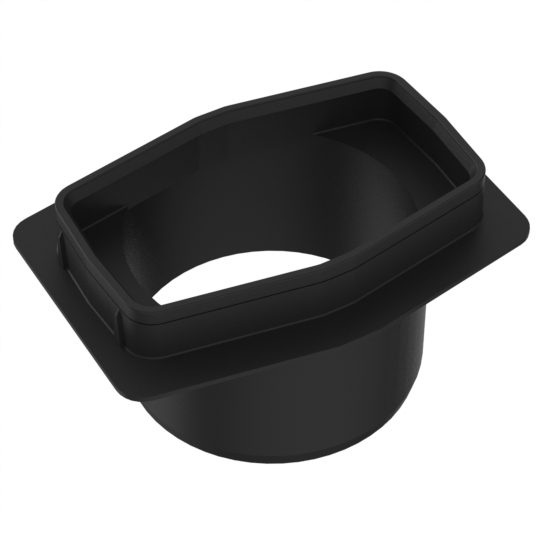

110mm Vertical outlet connector - 11285

Roddable foul air trap 110mm - 11191

Grating Lifting Tool - 1367
