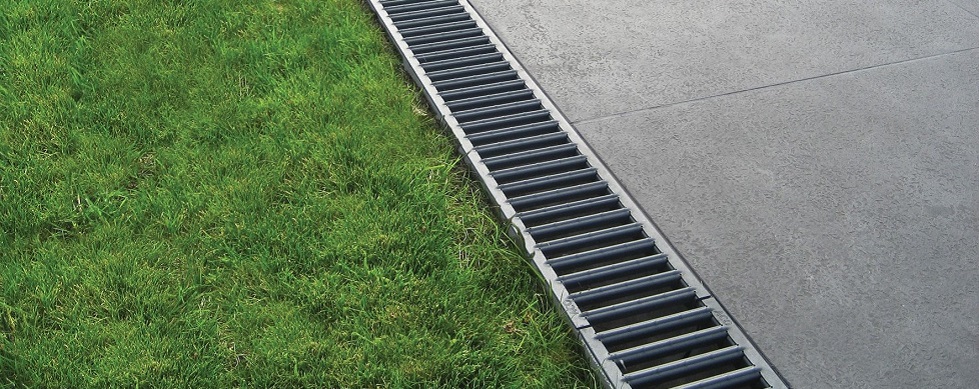

RainDrain Drainage channel for domestic applications

Manufactured from Vienite, ACO's high strength polymer concrete material, ACO RainDrain is suitable for domestic applications up to Load Class A 15.

The high quality ACO RainDrain channels interlock, allowing for quick and easy installation.

ACO's range of elegant and modern 'Complete the Look' gratings are available to provide choice and style to driveway and patio projects. A choice of eight gratings are available to provide the perfect finish:

  • Wedge Wire Stainless Steel
  • Mosaic Heelguard ATec
  • Intercept Heelguard ATec
  • Antique Iron Heelguard ATec
  • Polished Stainless Steel
  • Anthracite
  • Galvanised Steel
  • Black Plastic

Product overview video



Features

  • Lightweight design for easy handling and installation
  • Channel shape anchors product into concrete surround
  • Manufactured from recycled material
  • CE marked and fully certified to Load Class A 15 BS EN 1433:2002

Benefits

  • Knock-out for connection to 110mm PVC-U pipe
  • Channels interlock for quick and easy installation
  • Sealant groove for simple watertight installation
  • Profile improves speed of water and promotes self cleansing

Recommended Applications

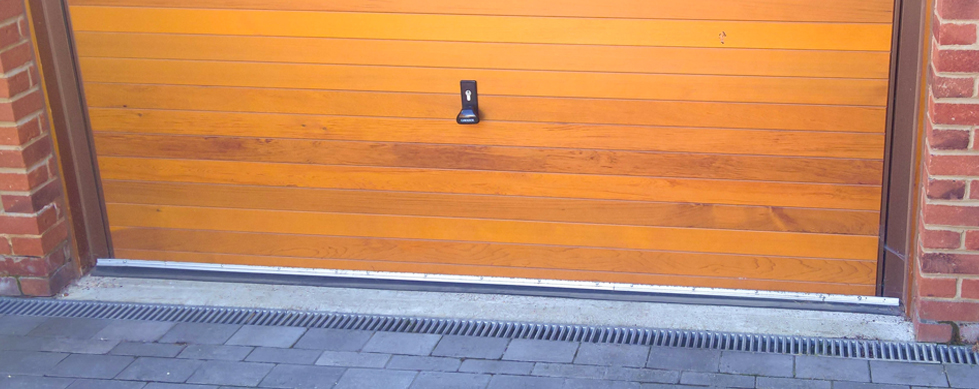

  • Garage Thresholds
  • Garage Thresholds
  • Patio and Paths
  • Patio and Paths
  • Pedestrian Precincts
  • Pedestrian Precincts

Not Recommended Applications

  • Car Parking Areas
  • Car Parking Areas

ACO RainDrain accessories

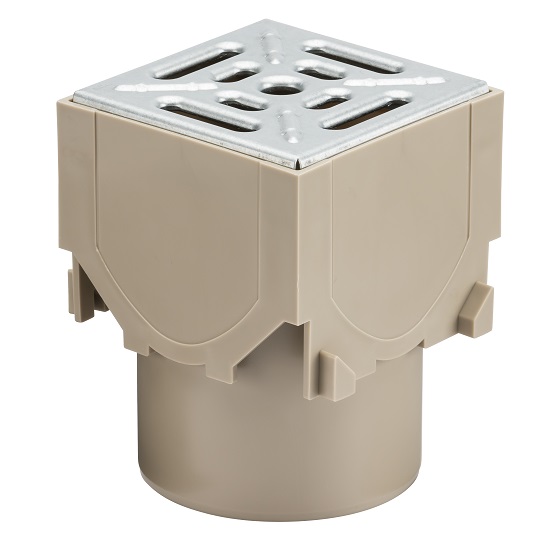

New ACO RainDrain corner unit

The new ACO RainDrain corner unit, features include:

  • Galvanised steel grating
  • Grating is easy to lift for access and inspections
  • Male and female connection to connect to ACO RainDrain channels
  • Knock out bottom outlet to connect to ø110mm pipe work
  • Four knock out sides for connecting to channels

ACO tips

How to remove the galvanised steel grate from your RainDrain A 15 channel

If your channels look like the ones shows on this page and have the following features:

  • Galvanised steel slotted grate with ACO engraved in opposing corners
  • Vienite Polymer channel
  • No fixing bolts / locking bolts on the grate

Then you’ve got ACO RainDrain A15 installed.

If you’d like to remove the grate for:

You can do this with a coat hanger. *please also wear relevant safety equipment, gloves are recommended

Lifting the grate

Ensure nothing is resting on top of the grate.

Insert the loop of the coat hanger in one end if the grate.

Lift the grate.

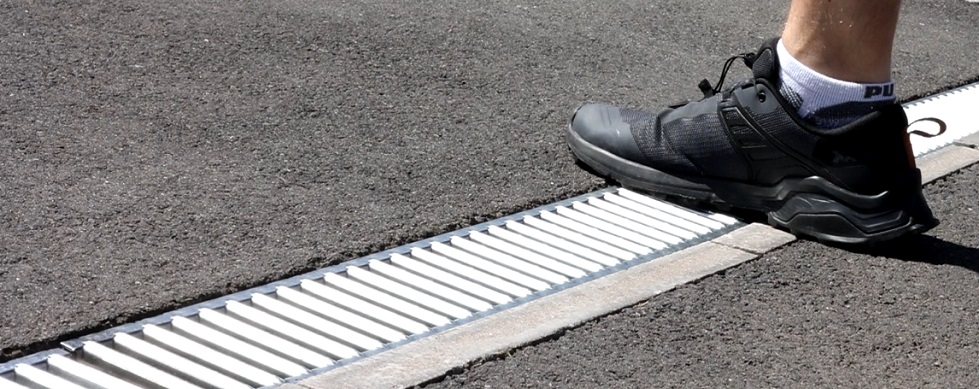

Replacing the grate

To replace the grate, just lay it back in place, and press back in.

What's the difference between ACO RainDrain and ACO RainDrain B 125

ACO RainDrain as shown on this page with a galvanised steel grate meets the A 15 Load Class.

ACO RainDrain B 125 has the some vienite polymer concrete channel body, however it comes with a cast iron grate. This assembly will meet the higher B 125 Load Class.

Please see the pdf brochure downloads in the column to the right of this page if you want to find out more about load classes and typical applications per load class

If you have ACO RainDrain installed, and want to upgrade it to ACO RainDrain B 125, you can! please see the videos below.

One point to note, if changing the grate of your RainDrain channel from galvanised steel to cast iron, that the cast iron grates can sit a little higher. However if the channel was properly installed following ACO installation details, even with the slight increase in height it should still finish lower than it's surrounding surface.
