Easyline H 50

Easyline H 50

Slim, durable drainage channel for light‑duty outdoor areas

Need a shallow patio or threshold drain? Easyline H50 is a low‑profile A15 channel for small paved areas, balconies and façades; it clips together quickly and offers end/side/vertical outlet options for fast connection.

FAQs

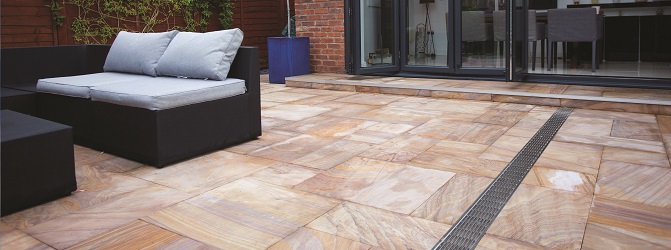

What’s it best for? Shallow build‑ups on patios, balconies, façades and door thresholds where a discreet channel is needed.
Do I need special corners? No—interlocking ends let you create L/T layouts; just seal the joints for watertightness.
Can it handle vehicles? No—use ACO RainDrain B 125 for driveways and vehicle crossings; Easyline is A15 for pedestrian areas.

Low Profile: With a depth of only 50mm, ACO Easyline is ideal for domestic installations where depth is at a premium, but care should be taken to check the channel can adequately drain the paved surface.*

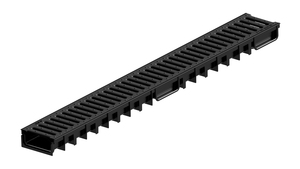

Two Finishes: ACO Easyline is available in a black plastic channel and matching grating or with a galvanised steel grating, adding both function and style to your outdoor space.

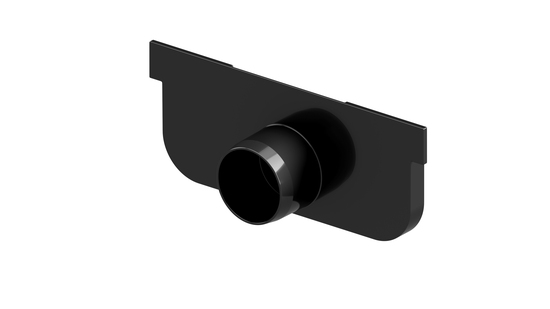

Installation Ease: ACO Easyline is lightweight and has an inbuilt 90-degree corner option. The range of accessories allow for rainwater to be drained from the end, sides or underneath of the channel.

Features & Benefits
Applications

Features

Low profile facilitates instillation where depth is at a premium
Interlocking joints between channels for straight and right-angle installation
Built-in sealing joint to use with sealant for watertight joint between channels

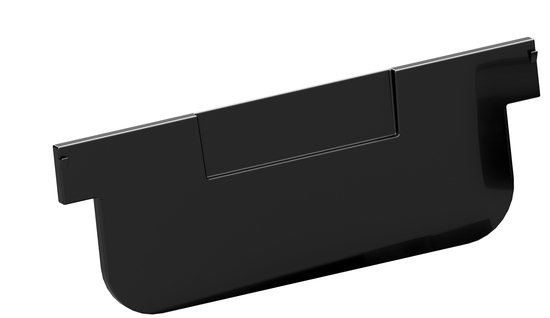

Easy-fit endcaps for male and female connection

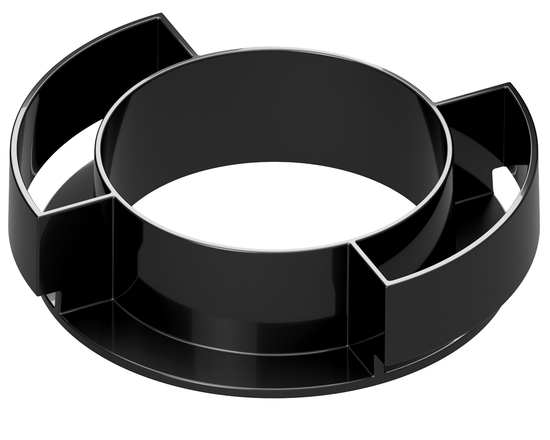

Accessories enable a range of horizontal and vertical outlets to facilitate connection to onward drainage
CE marked and fully certified to Load Class A 15 BS EN 1433:2002

Benefits

Ideal for domestic installations where a low profile channel is required
Quick and easy to install, with interlocking joints between channels
Full range of accessories to facilitate end, side and underneath connection to surface water drainage
Interlocking joints and four side outlets allow creation of L and T connections without additional corner unit

Recommended Applications

Balconies
Facades

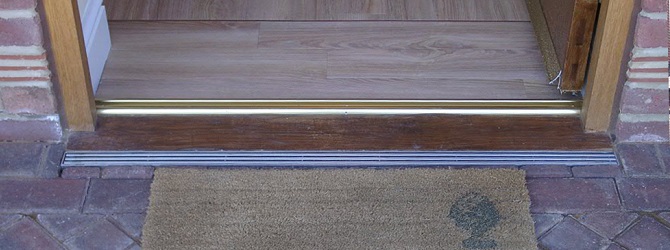

Thresholds

Not Recommended Applications

Drainage of large paved surfaces*
Trafficked locations

*A 5m run of Easyline A50 channel with a single outlet will drain up to 35m² paved area during a 50mm per hour rainfall event (in accordance with the guidance in Building Regulations for England 2015 Section H3 2.4).

Connecting and cornering with ease and economy

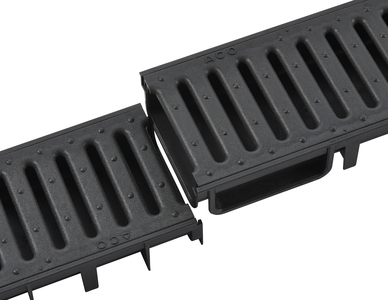

ACO Easyline H50 have a male and female connector at either end of the channel. This enables the swift interlocking of channels to create a straight channel run.

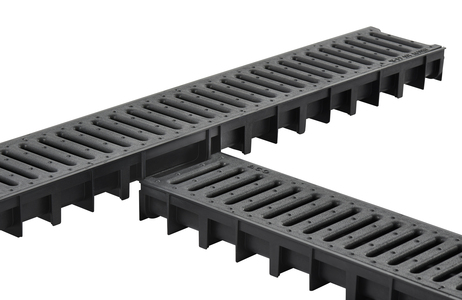

The same interlocking mechanism also allows T and L joints between channel runs without the need for a separate corner piece. Simply remove the relevant knockout, clip the channels together in the required configuration and apply sealant to the joints for a watertight connection.
