HexDrain Brickslot

Discreet slot drainage channel for domestic applications

Manufactured from recycled polypropylene, ACO HexDrain® Brickslot is suitable for pedestrianised areas and is certified for Load Class A 15.

The high quality ACO HexDrain Brickslot channels clip together, allowing for quick and easy installation.

The channel comes complete with an offset slotted grating, ideal for block paving up to and including 60mm.

A full range of accessories are available, designed to aid simple and fast installation.

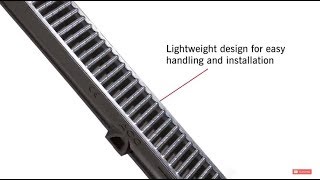

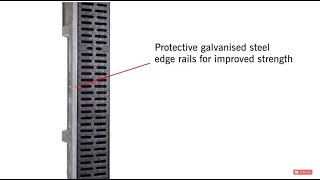

Product overview video

Features

  • Offset slot enables drainage location adjacent to walls and door thresholds
  • Installation guide clearly marked on the brickslot grating
  • Discreet 10mm inlet slot tapered to prevent blockage
  • Cutting guide to create half metre channels
  • UKCA and CE Marked and fully certified to Load Class A 15 BS EN 1433:2002

Benefits

  • Channels clip together for quick and easy installation
  • Suitable for use in Building Regulations Part M compliant installations in England and Wales and Building Standards Section 4 compliant installations in Scotland
  • Debris guard stops the ingress of sand and cement between units during installation
  • Offset grating ideal for use with block paving up to 60mm

Recommended Applications

  • Garage Thresholds
  • Patios and Paths
  • Pedestrian Precincts
  • Block Paving

Not Recommended Applications

  • Car Parking Areas

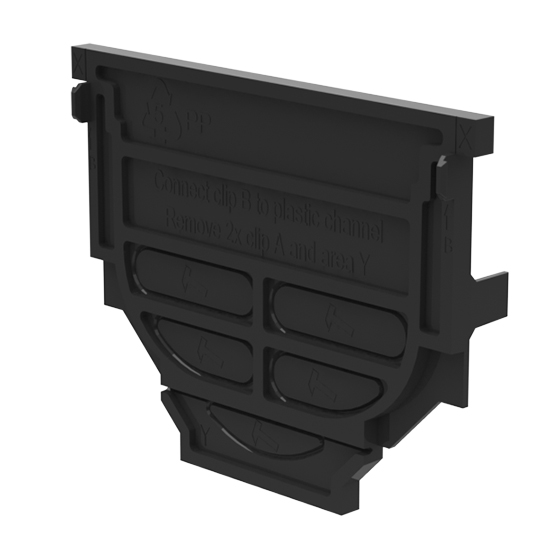

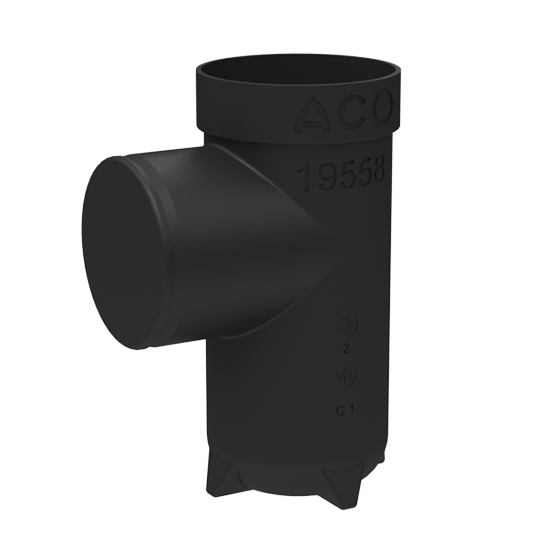

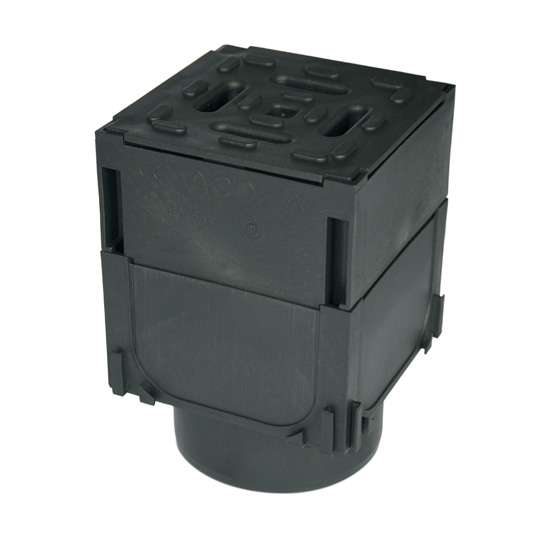

HexDrain Brickslot accessories

ACO Tips
Application areas

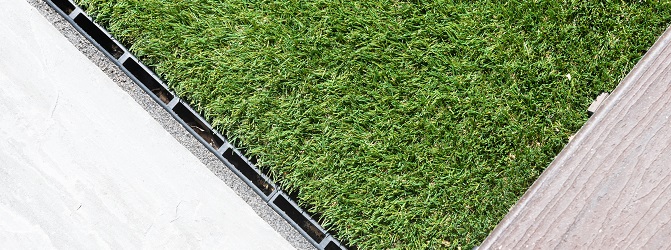

Patio drainage

Click the image above to learn more about patio drainage options and tips from ACO.

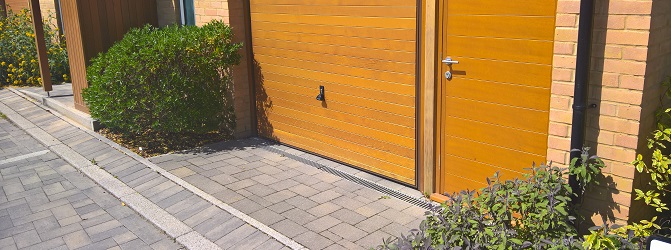

Garage threshold drainage

Click the image above to learn more about garage threshold drainage options and tips from ACO.
