ACO StepDrain

Slimline domestic level threshold door drainage

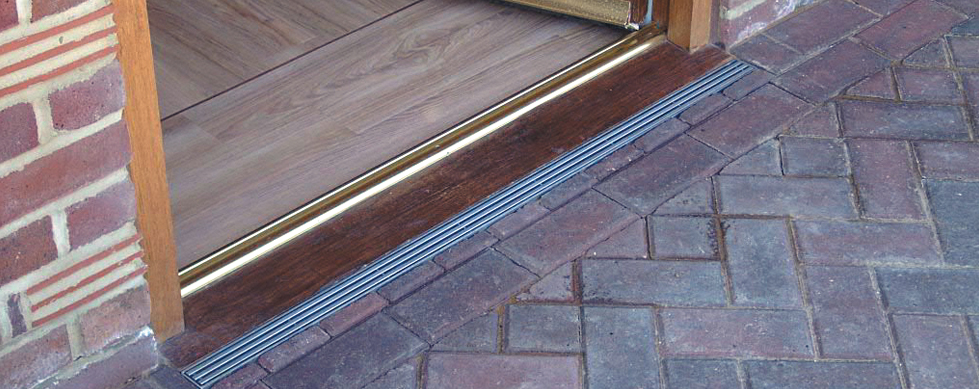

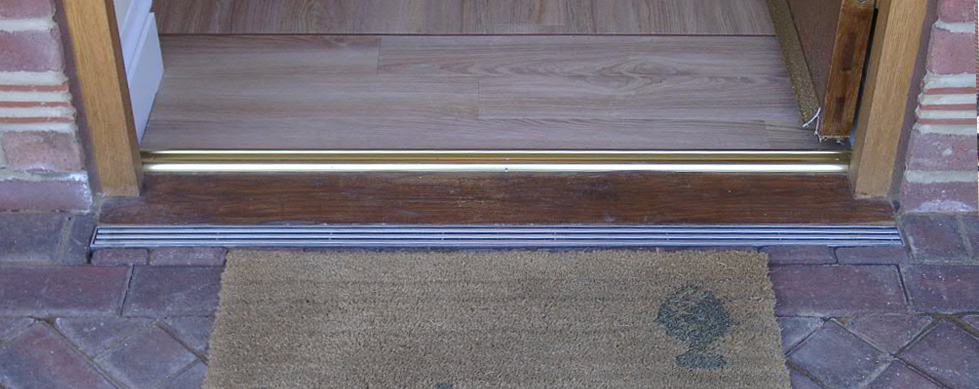

Manufactured from galvanised and stainless steel, ACO StepDrain eliminates water ponding at house entrances.

ACO StepDrain comes complete with a corrosion resistant 304 stainless steel HeelGuard grating suitable for pedestrian traffic.

The system is available in two sizes (940mm and 1088mm) making it ideal for almost any door size.

Supports the installation of a level threshold in accordance with the Building Regulations (see below)

Features

  • Quick and easy installation, door frame does not need to be cut to install system
  • Sub-surface drainage inlets
  • Silt bucket provided for ease of maintenance and cleaning
  • Outlet for 40mm waste pipe

Benefits

  • Available in two channel lengths, 940mm and 1088mm
  • Body of the unit manufactured from galvanised steel
  • System ideal for use with up to 100mm block paving
  • Frame manufactured from grade 304 stainless steel
  • Removable HeelGuard™ grating manufactured from grade 304 stainless steel
  • Supports the installation of a level threshold in accordance with the Building Regulations (see below)

Recommended Applications

  • External Level Thresholds

Not Recommended Applications

  • Landscaping
  • Driveways
  • Car Parking Areas
Accessible Thresholds in the Building Regulations

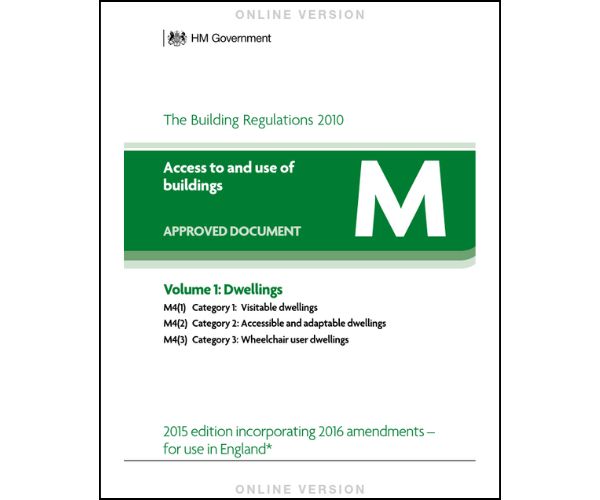

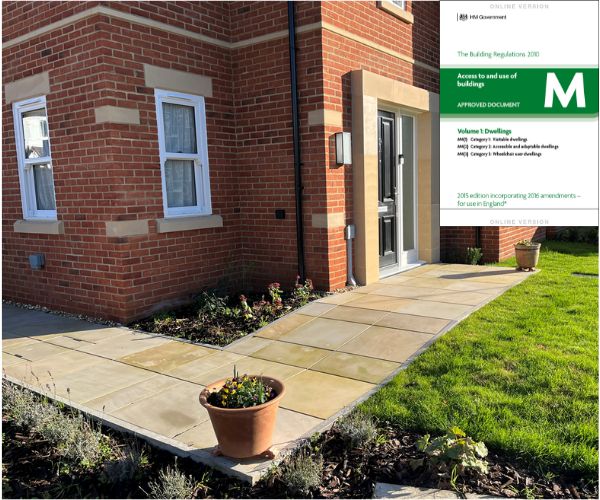

The Front Cover of Document M Building Regulations for England

ACO Threshold Drain enables installers to deliver an external accessible threshold as required by the Building Regulations.

In England and Wales, Approved Document M of the Building Regulations covers access to and use of buildings. Volume 1 applies to ‘newly erected dwellings and dwellings undergoing material alteration only.’ In each of the three categories, external thresholds must have an ‘accessible threshold’, defined as ‘level or, if raised, has a total height of not more than 15mm, a minimum number of upstands and slopes and with any upstands higher than 5mm chamfered.’ In Scotland the same requirement is covered in Section 4.1.9 of the Scottish Building Standards.

Where there is a level entry to a building, provision of threshold drainage is even more important to minimise the risk of water entering the property.
