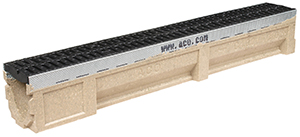

CivicDrain channel for light to medium duty traffic applications

Manufactured from Vienite, ACO’s high strength polymer concrete material, ACO CivicDrain is suitable for vehicle traffic up to Load Class C 250.

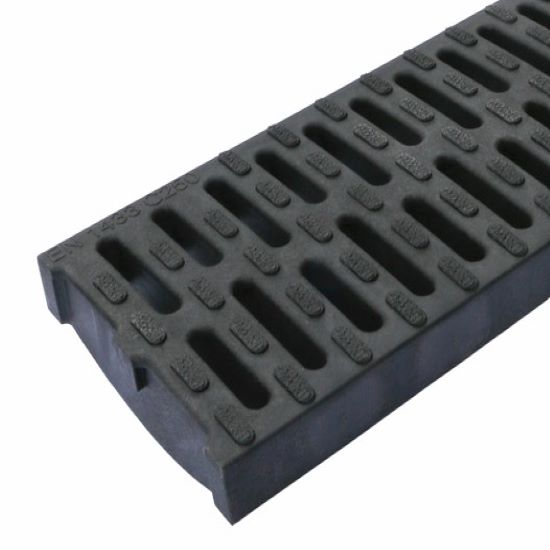

ACO CivicDrain comes complete with a corrosion resistant black composite Heelguard grating, ideal for pedestrian traffic.

The ACO Drainlock grating has a bar-less locking device, allowing for quick and simple installation of gratings.

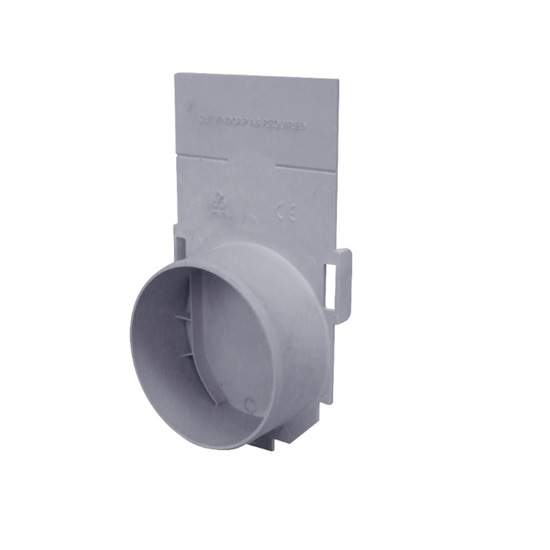

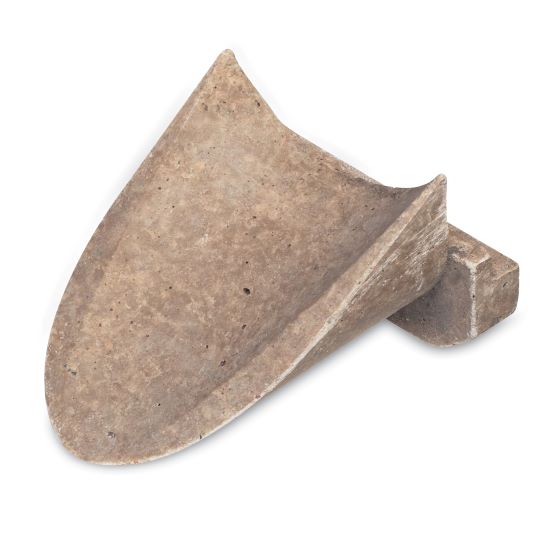

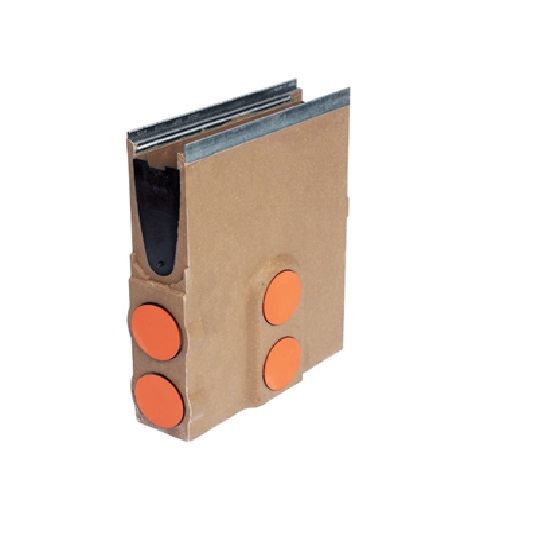

A full range of accessories are available, designed to aid simple and fast installation.

Product Overview Video


  • Anti-shunt prevents grating movement once installed
  • ACO Drainlock grating - this bar-less locking device allows quick and simple installation of gratings
  • Protective galvanised steel edge rails for improved strength
  • Strong and lightweight polymer concrete design improves stability
  • Heelguard gratings with 8mm slots
  • CE marked and fully certified to Load Class C 250 BS EN 1433:2002

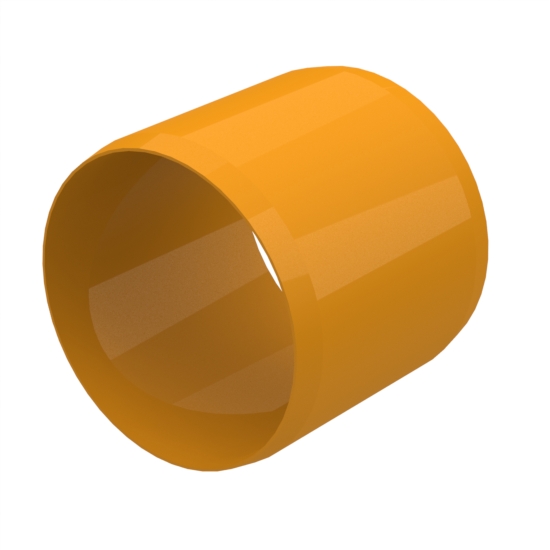

  • Knockout for connection to 110mm PVC-U pipe via drain union
  • Male and female channel connections to aid accurate installation
  • Profile improves speed of water and promotes self cleansing
  • Sealant groove for simple watertight installation

Recommended Applications

  • Domestic Landscaping
  • Public Landscaping
  • Car Parks
  • Driveways

Not Recommended Applications

  • Thresholds
