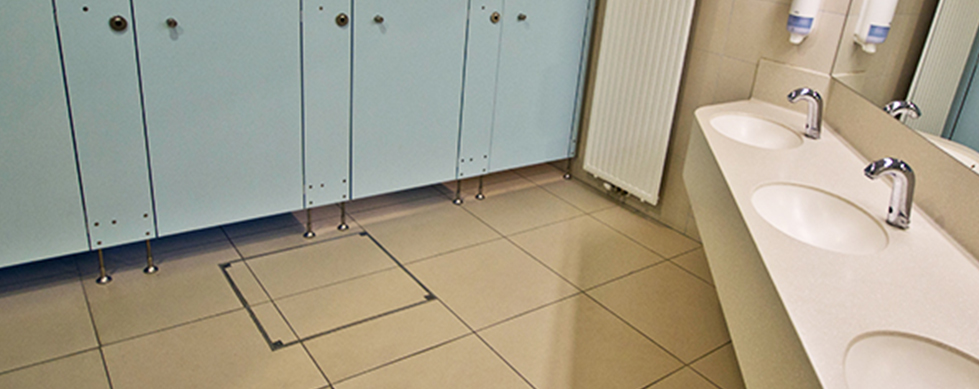

UniFace Recessed Covers Designed to blend with hard and flexible floors

The ACO UniFace™ range is designed to blend perfectly with a wide selection of both hard or flexible floor infills of thicknesses up to 15mm. Providing simple access to underlying services, ACO UniFace™ recessed access covers are available in either aluminium, hot dipped galvanised steel or stainless steel grade 304 as standard. Covers can also be manufactured in stainless steel grade 316 if required.

ACO UniFace™ covers are fully certified to BS EN 1253-4 and BS EN 124 European standards, and to ensure easy specification, use Fabricated Access Cover Trade Association (FACTA) classifications. All covers are fitted with liquid and odour tight EPDM seals as standard, and are available in a range of standard clear opening sizes from 200mm to 1200mm. Bespoke solutions are also available to meet individual project requirements.

UniFace Product Range

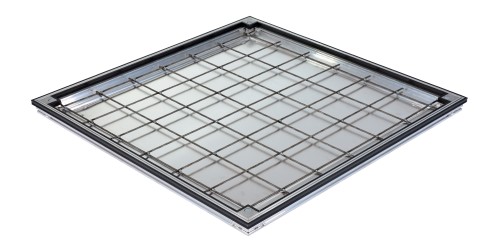

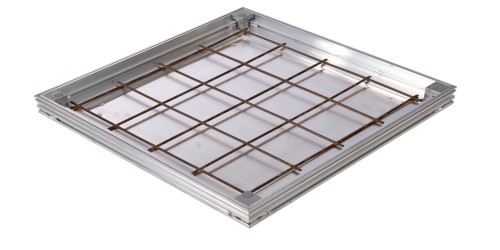

UniFace™ AL SHALLOW

Aluminium single recessed covers with a frame depth of only 50mm. Ideal for pedestrian traffic applications where installation depths are restricted. Wide range of size options available for clear openings of between 200mm and 1200mm. FACTA class A.

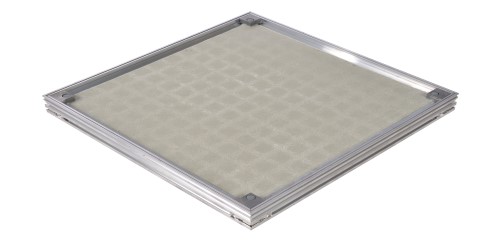

UniFace™ AL SMART

Aluminium and structural composite single recessed covers allow flooring material to be installed directly without the need for a concrete infill making them lighter to remove and faster to install. With a frame depth of only 50mm, they are ideal for pedestrian traffic applications where installation depths are restricted. Range of size options available for clear openings of between 200mm and 600mm. FACTA class A.

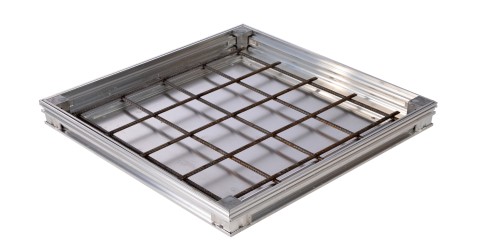

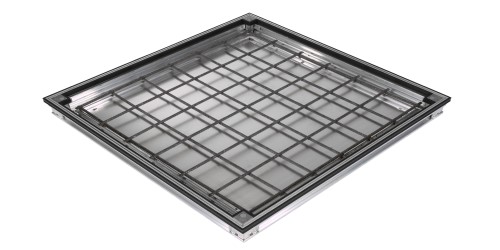

UniFace™ AL

Aluminium single recessed covers with a frame depth of 73mm ideal for pedestrian and light duty vehicle traffic. Wide range of size options available for clear openings of between 200mm and 1200mm. FACTA class A and AAA.

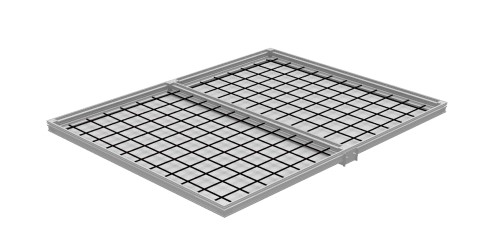

UniFace™ AL DUCT

Aluminium multipart recessed covers with a frame depth of 73mm. Ideal for linear ducting applications with pedestrian traffic. Fully removable support beams allow unimpeded access. Available for clear openings of between 200mm and 1200mm and lengths to suit individual customer requirements.  FACTA class A.

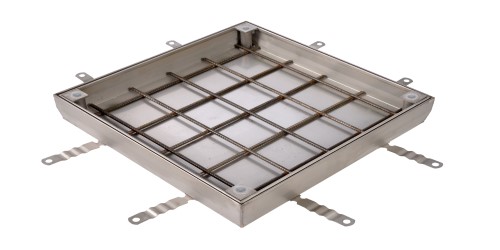

UniFace™ GS and SS

Hot dipped galvanised steel and stainless steel grade 304 single recessed covers with a frame depth of 83mm. Covers can also be supplied in stainless steel grade 316 to special order. Ideal for pedestrian, light vehicle and medium duty fork-lift truck areas. Wide range of size options available for clear openings of between 300mm and 1200mm.  FACTA class A, B and D.

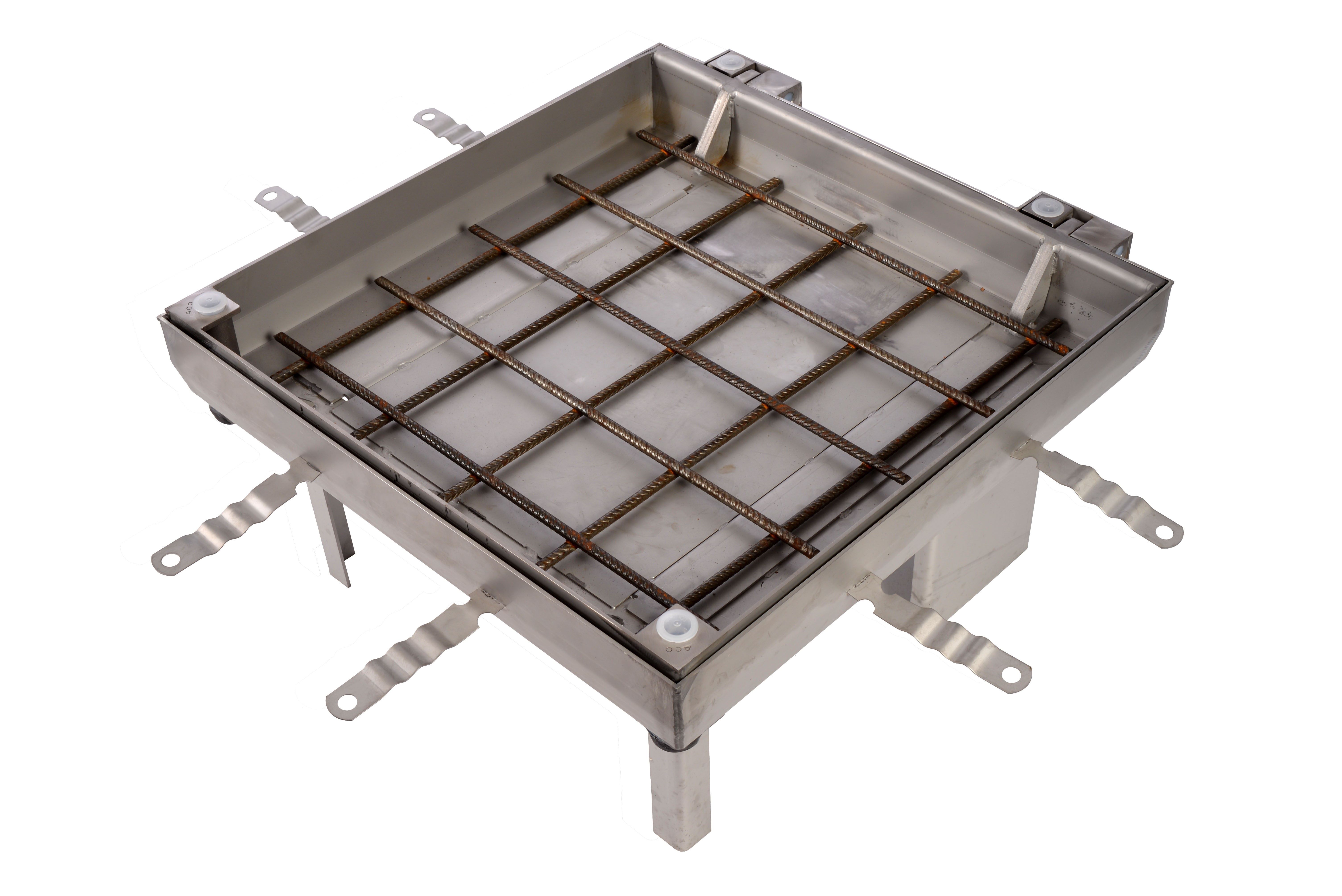

UniFace™ GS and SS ASSIST

Hot dipped galvanised and stainless steel grade 304 gas spring assisted single recessed covers, designed for one person minimal effort operation. Ideal in areas where frequent access is required. With a frame depth of 89mm, these hinged covers are ideal for pedestrian, light vehicle and medium duty fork-lift truck areas. Wide range of size options available for clear openings of between 400mm and 1000mm.  FACTA class A, B and D.

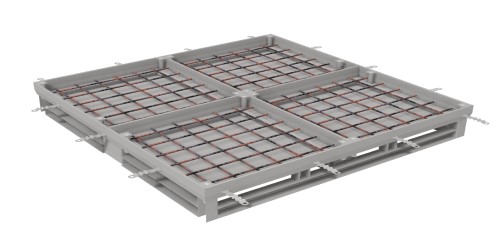

UniFace™ GS and SS MULTI

Hot dipped galvanised and stainless steel grade 304 stainless steel multipart recessed covers with a frame depth of 83mm. Designed for use over larger chambers where multi cover access is required with fully removable support beams for unimpeded access. Ideal for pedestrian, light vehicle and medium duty fork-lift truck areas. Available for clear openings of between 600mm and 2000mm and lengths to individual customer requirements.  FACTA class A, B and D.

Features

  • Available in either aluminium, hot-dipped galvanised steel or stainless steel grade 304 as standard.
  • All products fitted with liquid and odour-tight seals
  • Manual or gas spring assisted versions available
  • Stainless steel locking screws included as standard

Benefits

  • Simple access to underlying services
  • Optimum cover security
  • Versatile designs for pedestrian, light vehicle and medium duty fork-lift truck applications

Recommended Applications

  • Offices
  • Shopping centres
  • Transport hubs
  • Leisure facilities
  • Residential
  • Hospitals
  • Education
  • Warehousing
  • Kitchens
  • Landscaping
